Large Flow Mobile Rotary Lobe Pump Truck For Disaster Relief

Name: Large Flow Mobile Rotary Lobe Pump Truck For Disaster Relief
Brand: ACCUVON
Price: 1 USD

Large Flow Mobile Rotary Lobe Pump Truck For Disaster Relief Manufactures

Brand Name : ACCUVON

Model Number : AX 250

Certification : API , IOS , CE, 3A , FDA

Place of Origin : Guangzhou of China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Pieces per Month

Delivery Time : 8 - 12 work days

Packaging Details : Export wooden box packaging

Flow : 200m³/ h - 3200m³/ h

Seal : Cartridge Mechanical Seal

Rotor material : GG25

Pressure : 25 bar

Self-priming height : 8.5m

Connection : Direct Flange

Theory : Positive Displacement Pump

Contact Now

Large Flow Mobile Rotary Lobe Pump Truck For For Disaster Relief

Accuvon rotary lobe pump truck

Our most powerful rotary lobe pumps with maximum flow
rates of up to 3200 m³/hr are installed on a truck trailer together with the drive.

The pumps can be very easily operated by means of the user-friendly control element. The required flow rate can be adjusted independently from the counter pressure. Various parameters of motor and pump activity are monitored and indicated on the multi-function display.

Functions And Options

The mobile pumps on truck trailers are manufactured in our company in line with your individual wishes and requirements. From the pump size through a customized control technology right up to any special accessories – we make your wishes come true.

Technical Date:

Product Name:	oily sludge Pumps
Material:	GG25 Pump housing,FKM rotors
Seal Material:	SIC/FKM
Max. Flow:	200~3200 m3/h
Max.pressure:	25 bar
Speed	25~650 RPM
Rotor Type:	Tri lobe rotors
Mechanical seal:	Cartridge Mechanical Seal
Motor power:	22KW~600KW
Sealing option:	single mechanical seal/Double mechanical seal
Voltage:	380V,50HZ
Motor:	XINGLING motor, WANNAN motor, others (Domestic Famous Brand)
connection:	Direct Flange
Available standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electric power
Application scope:	petrochemical industry, sewage treatment, railway vacuum discharge system, biogas energy, food waste, ship ocean, pulp and paper, food and drinks, light industry etc.

Specifications:

ACCUVON	rate of flow l/rev	flow (m³/h)	pressure (Mpa)	speed rpm	Flange diameter DN mm	power Kw
AC25	0.196	0.1-7	0-1.2	10-600	DN25	0.75-5.5
AC50	0.392	0.2-14	0-1.0	10-600	DN50	1.1-5.5
AC75	0.588	0.3-21	0-0.6	10-600	DN50	1.1-5.5
AP80	1.125	0.6-400	0-1.8	10-600	DN80	3-22
AP100	1.875	1.1-66	0-1.4	10-600	DN100	3-22
AP120	2.864	1.7-103	0-1.0	10-600	DN100	3-22
AP140	3.714	2.2-133	0-0.6	10-600	DN125	7.5-22
AF125	4.566	2.7-164	0-1.6	10-600	DN125	11-55
AF150	6.828	4-246	0-1.2	10-600	DN150	11-55
AF200	9.456	5.5-340	0-0.8	10-600	DN200	11-55
AX250	12.5	7.5-487	0-2.5	10-650	DN250	22-315
AX300	25	15-975	0-1.0	10-650	DN300	30-315
AX350	37.5	22.5-1463	0-0.6	10-650	DN350	45-315
AX450	50	30-1950	0-0.4	10-650	DN450	55-315
AX350D	75	45-2926	0-0.6	10-650	DN350*2	90-450
AX450D	100	60-3900	0-0.4	10-650	DN450*2	110-600

Note: Above flange is regular for each model, besides we also offer various flange connection according to your requirements

Construction

1. The rotary lobe pump
The high-performance pump and the pipe connectors are designed and manufactured
individually to suit your application. The flow rate is variable.
2. The motor
A combustion motor (with sound enclosure upon request) drives the pump.
3. The control technology
User-friendly control of the pump via a clearly arranged control element with multi function display.
4. The storage compartments
Various storage compartments are installed on the truck trailer.
5. Online maintenance/repair
Even our largest pumps are very easy to maintain. In order to facilitate maintenance work on the pump, a wire rope hoist is attached at the roof. This way, even the large AX series pumps can be maintained very easily.

Advantage

+ Fully independent thanks to drive by means of a combustion motor
+ Flow rate of up to 3200 m³/hr.
+ With additional power generator upon request
+ Sophisticated control technology
+ Motor with sound enclosure
+ Lots of space for storage compartments

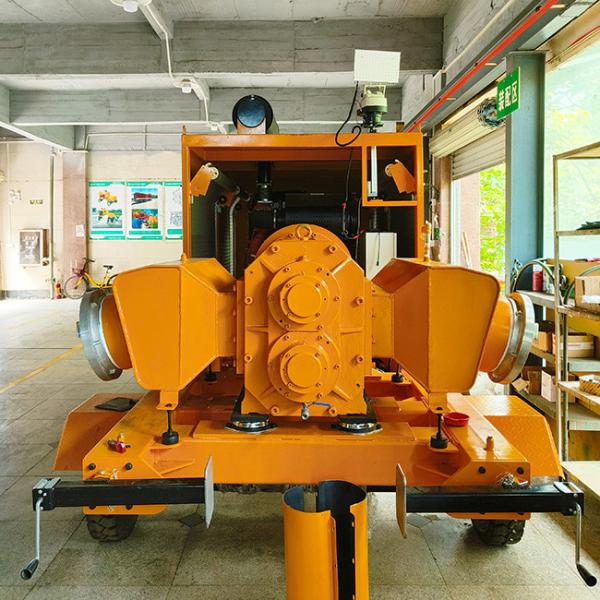

Testing Photo

Large Flow Mobile Rotary Lobe Pump Truck For Disaster Relief
