Heat-Resistant AP1 676 Oil Sludge Pump Rotary Lobe Pump With FKM Rotor

  • 1
  • 2

Brand Name : ACCUVON

Model Number : AP80

Certification : API , IOS , CE, 3A , FDA

Place of Origin : Guangzhou of China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Pieces per Month

Delivery Time : 8 - 12 work days

Packaging Details : Export wooden box packaging

Flow : 35 m³/ h

Seal : Mechnical Seal / FKM

Rotor material : FKM

Pressure : 6 bar

Temperature : 50℃

Connection : Flange

Theory : Positive Displacement Pump

Contact Now

Heat-Resistant AP1 676 Oil Sludge Pump Rotary Lobe Pump With FKM Rotor

Pumping in the Oil and Gas Industry

Rotary Lobe Pumps can handle abrasives, self-prime, pump thick viscous materials, and can pump a steady GPM flow up to 2000 GPM at steady pressures up to 150 PSI. This has lead to them being used in many oil and gas applications. They are used for pumping clean drilling fluid,feeding decanting centrifuges, and for treating water produced in the upstream business. They are excellent as booster pumps in pipelines for oil contain in abrasives and are often applied to handle waste oil. They are a preferred solution for pumping jet fuel and diesel from tanks recuiring a suction lift because of their self priming capability.
We make an AP1 676 pump that complies o AP1 676 with the exception of the seals. We manufacture an oi lubricated cartridge seal which we have found to be long lasting and leak free that is field proven in many tough applications.
Technical Date:

Product Name:oily sludge Pumps
Description:Designed according to API676 standard, Suitable for conveying high viscosity medium, containing solid particles liquid, high abrasiveness liquid,Shear-sensitive medium, gas-liquid mixture, and fluids with quantitative feeding.
Material:GGG25 Pump housing,FKM rotors
Seal Material:SIC/FKM
Max. Flow:35 m3/h
Max.pressure:6 bar
Speed300 RPM
Rotor Type:Tri lobe rotors
Mechanical seal:Single acting Cartridge Mechanical Seal
Motor power:2.2KW~22KW
Sealing option:single mechanical seal/Double mechanical seal
Voltage:380V,50HZ
Motor:WANNAN motor, others (Domestic Famous Brand)
connection:Flange
Available standard:DIN, SMS, 3A, RJT, ISO/IDF
Operated:Electric power
Application scope:petrochemical industry, sewage treatment, railway vacuum discharge system, biogas energy, food waste, ship ocean, pulp and paper, food and drinks, light industry etc.


Specifications:

ACCUVONrate of flow
l/rev		flow
(m³/h)		pressure
(Mpa)		speed
rpm		Flange diameter
DN mm		power
Kw
AC250.1960.1-70-1.210-600DN250.75-5.5
AC500.3920.2-140-1.010-600DN501.1-5.5
AC750.5880.3-210-0.610-600DN501.1-5.5
AP801.1250.6-4000-1.810-600DN803-22
AP1001.8751.1-660-1.410-600DN1003-22
AP1202.8641.7-1030-1.010-600DN1003-22
AP1403.7142.2-1330-0.610-600DN1257.5-22
AF1254.5662.7-1640-1.610-600DN12511-55
AF1506.8284-2460-1.210-600DN15011-55
AF2009.4565.5-3400-0.810-600DN20011-55
AX25012.57.5-4870-2.510-650DN25022-315
AX3002515-9750-1.010-650DN30030-315
AX35037.522.5-14630-0.610-650DN35045-315
AX4505030-19500-0.410-650DN45055-315
AX350D7545-29260-0.610-650DN350*290-450
AX450D10060-39000-0.410-650DN450*2110-600


Advantage

+ 16 pump sizes with flow rates of 1–3200 m³/h
+ With and without casing protection plates and liners
+ Flow rates of 1–3200 m³/h
+ Highest degree of safety due to oil-filled quench chamber as standard
+ Large variety of materials for all components of the pump
+ A suitable rotor for each application
+ Almost pulsation-free, gentle pumping of sensitive media
+ Excellent volumetric efficiency thanks to the perfect rotor-casing combination
+ Large intermediate chamber for a maximum choice of sealing systems
+ Smooth running even at high pressures

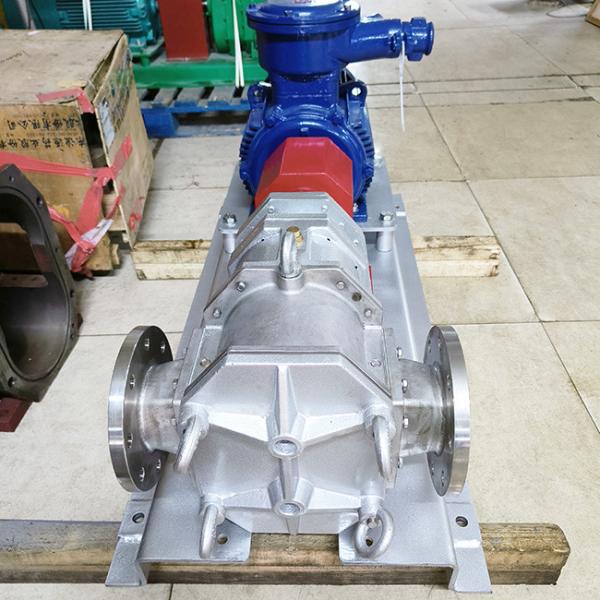

Testing Photo

Heat-Resistant AP1 676 Oil Sludge Pump Rotary Lobe Pump With FKM RotorHeat-Resistant AP1 676 Oil Sludge Pump Rotary Lobe Pump With FKM RotorHeat-Resistant AP1 676 Oil Sludge Pump Rotary Lobe Pump With FKM RotorHeat-Resistant AP1 676 Oil Sludge Pump Rotary Lobe Pump With FKM Rotor

Heat-Resistant AP1 676 Oil Sludge Pump Rotary Lobe Pump With FKM Rotor
