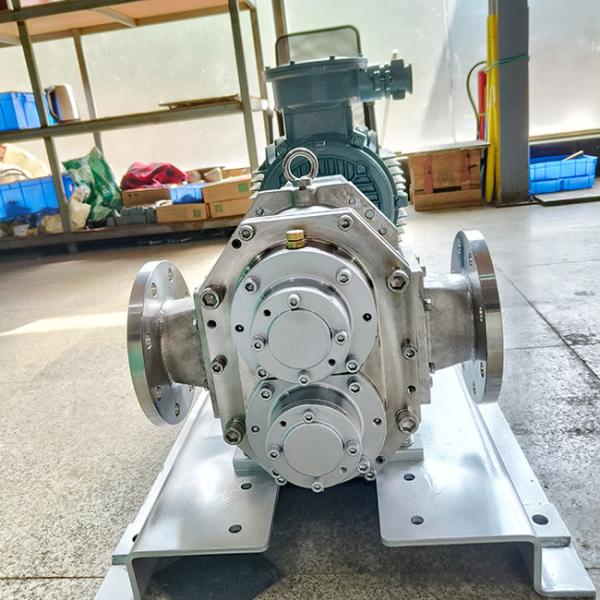

316L Stainless Steel Rotor Positive Displacement Pump In Oil Industry
Pumping in the Oil and Gas Industry
Rotary Lobe Pumps can handle abrasives, self-prime, pump thick viscous materials, and can pump a steady GPM flow up to 2000 GPM at steady pressures up to 150 PSI. This has lead to them being used in many oil and gas applications. They are used for pumping clean drilling fluid,feeding decanting centrifuges, and for treating water produced in the upstream business. They are excellent as booster pumps in pipelines for oil contain in abrasives and are often applied to handle waste oil. They are a preferred solution for pumping jet fuel and diesel from tanks recuiring a suction lift because of their self priming capability.
We make an AP1 676 pump that complies o AP1 676 with the exception of the seals. We manufacture an oil lubricated cartridge seal which we have found to be long lasting and leak free that is field proven in many tough applications.
Specifications:
| ACCUVON | rate of flow
l/rev | flow
(m³/h) | pressure
(Mpa) | speed
rpm | Flange diameter
DN mm | power
Kw |
| AC25 | 0.196 | 0.1-7 | 0-1.2 | 10-600 | DN25 | 0.75-5.5 |
| AC50 | 0.392 | 0.2-14 | 0-1.0 | 10-600 | DN50 | 1.1-5.5 |
| AC75 | 0.588 | 0.3-21 | 0-0.6 | 10-600 | DN50 | 1.1-5.5 |
| AP80 | 1.125 | 0.6-400 | 0-1.8 | 10-600 | DN80 | 3-22 |
| AP100 | 1.875 | 1.1-66 | 0-1.4 | 10-600 | DN100 | 3-22 |
| AP120 | 2.864 | 1.7-103 | 0-1.0 | 10-600 | DN100 | 3-22 |
| AP140 | 3.714 | 2.2-133 | 0-0.6 | 10-600 | DN125 | 7.5-22 |
| AF125 | 4.566 | 2.7-164 | 0-1.6 | 10-600 | DN125 | 11-55 |
| AF150 | 6.828 | 4-246 | 0-1.2 | 10-600 | DN150 | 11-55 |
| AF200 | 9.456 | 5.5-340 | 0-0.8 | 10-600 | DN200 | 11-55 |
| AX250 | 12.5 | 7.5-487 | 0-2.5 | 10-650 | DN250 | 22-315 |
| AX300 | 25 | 15-975 | 0-1.0 | 10-650 | DN300 | 30-315 |
| AX350 | 37.5 | 22.5-1463 | 0-0.6 | 10-650 | DN350 | 45-315 |
| AX450 | 50 | 30-1950 | 0-0.4 | 10-650 | DN450 | 55-315 |
| AX350D | 75 | 45-2926 | 0-0.6 | 10-650 | DN350*2 | 90-450 |
| AX450D | 100 | 60-3900 | 0-0.4 | 10-650 | DN450*2 | 110-600 |
Seal Variety
Know-how gained from several decades of pump and mechanical
seal construction has been used to build each Accuvon seal.
In order to be able to select a seal which is perfectly suited to every single application, we offer different versions of our singleand double-acting mechanical seals.
Mechanical seals of other manufacturers can also be installed upon
request. In addition, there is the option to integrate a quench chamber, flush or thermosiphon system.
Seal faces, elastomers and seal casings made of different materials make sure that the most resistant and durable materials are used for each pumped medium. All seal types are available as a cartridge unit and are simply replaced through the quick-release cover of the pump.
Outstanding Range Of Material
The correct selection of material is important for the durability of a pump. For this reason, all components of our pumps are available in different materials. Using a modular principle, the most resistant material most suitable for the relevant pumped medium is selected for each pump component, from the O-ring to the pump casing.
Unique Block Design
Each rotary lobe pump is equipped with a non-segmented pump and gear casing. This design reflects our high quality standard and guarantees long service life with ease of maintenance. The pump casing can be manufactured in cast iron, cast steel, stainless steel, duplex steel or Hastelloy.
Testing Photo
